SWYFT Tube Connectors

Also See: SWYFT Tube
Also See: SWYFT Tube Endcaps

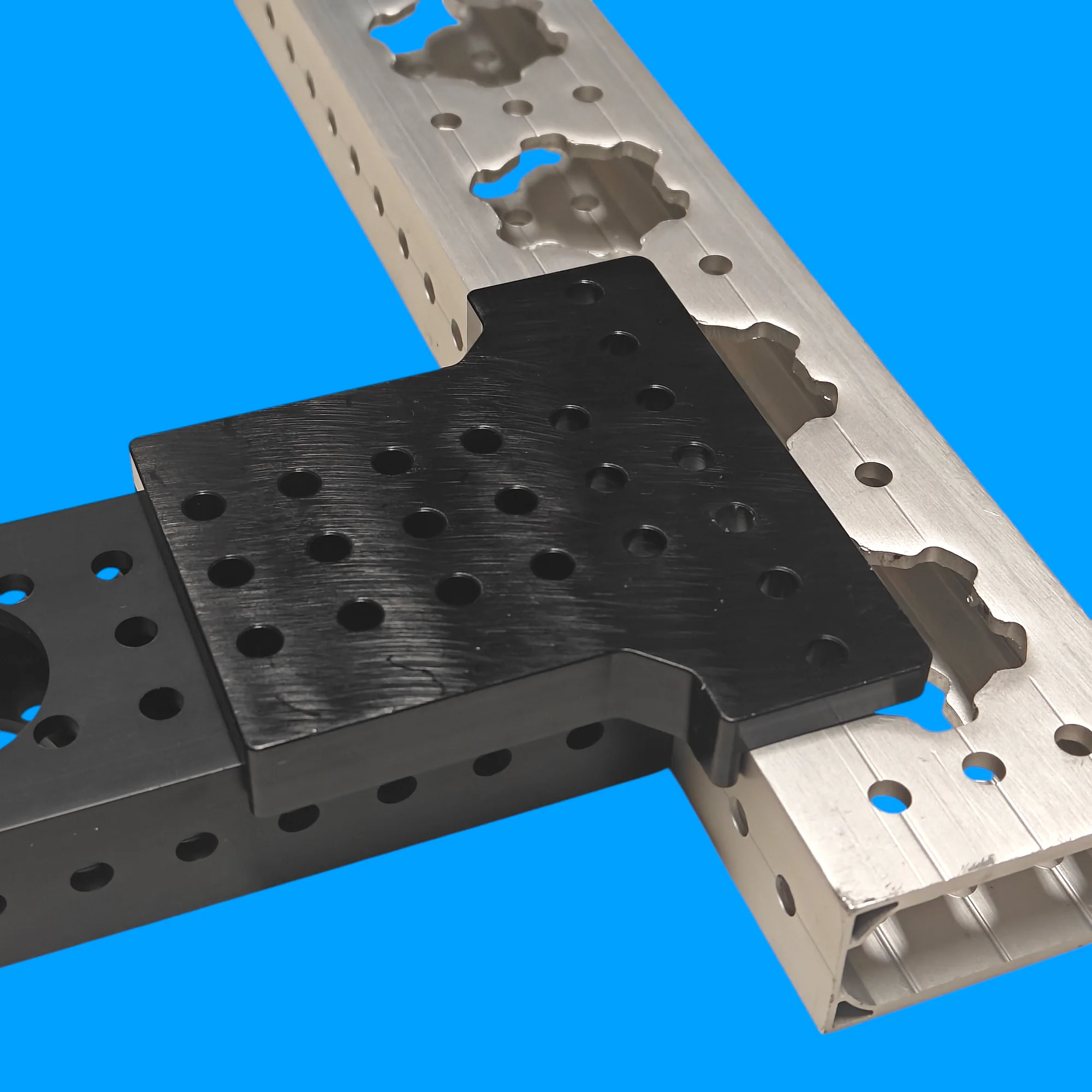

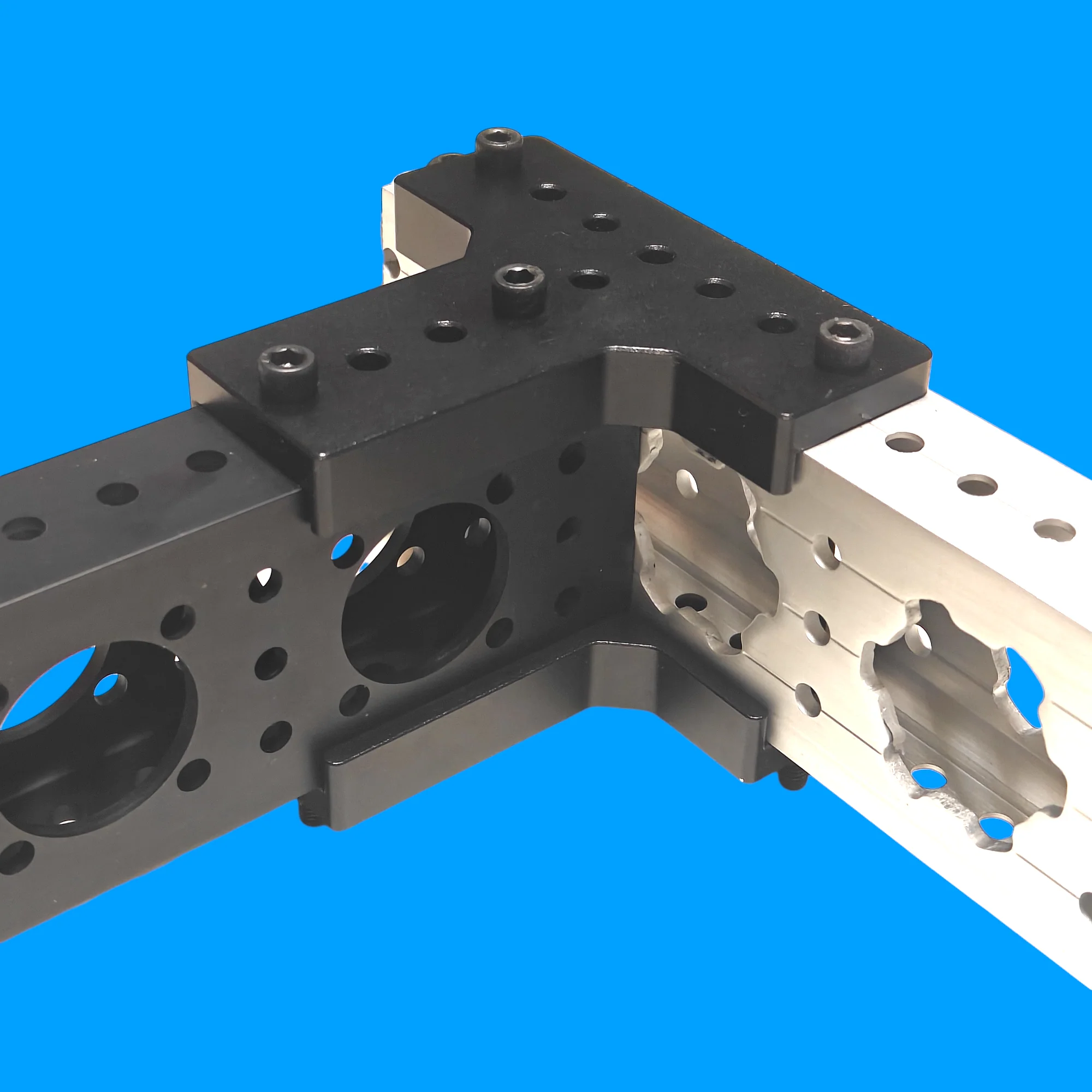

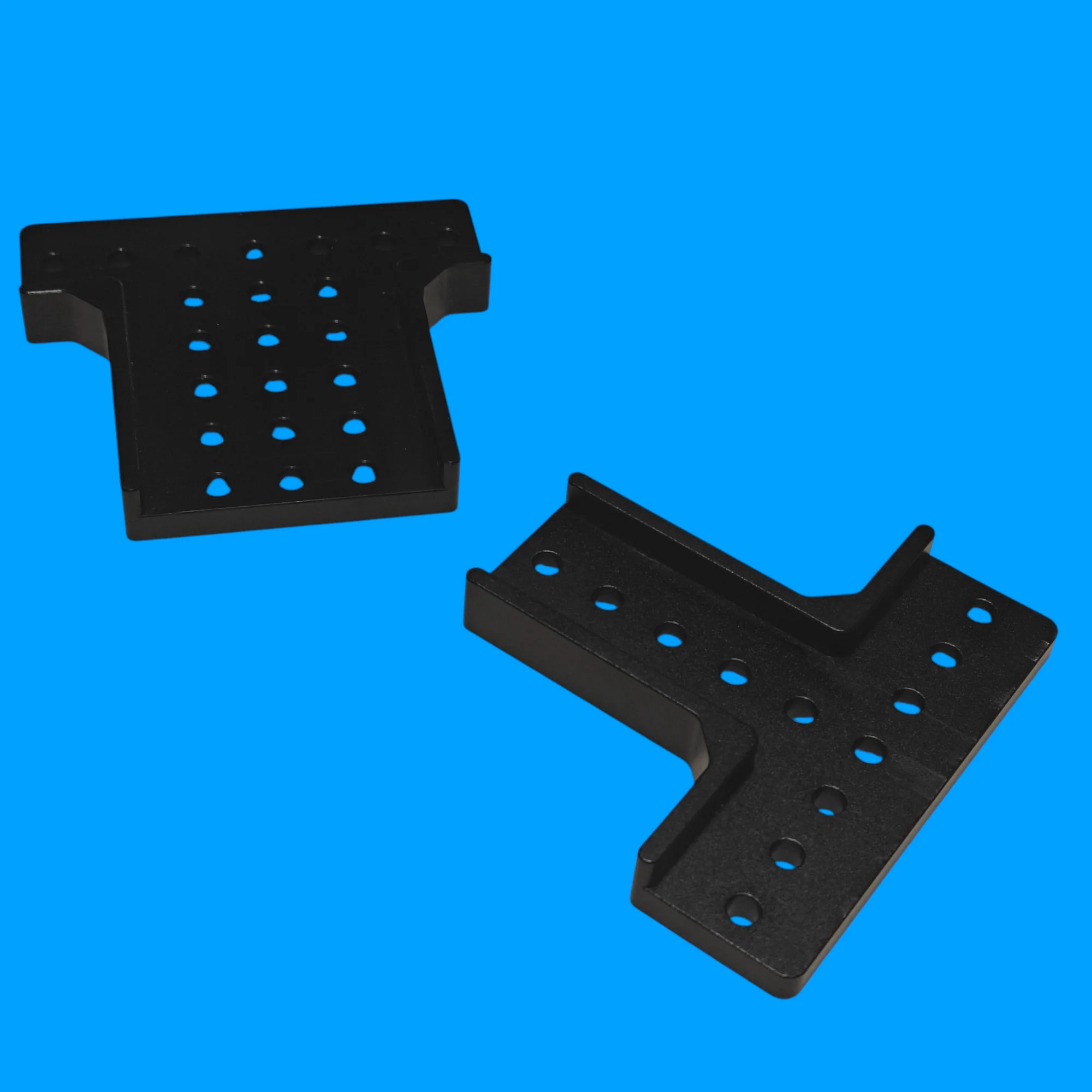

Strengthen your FRC robot's framework with SWYFT Tube Connectors, billet aluminum brackets designed for secure, high-strength connections in competitive robotics. Engineered by SWYFT Robotics, these connectors enable robust 90-degree joints for 2" x 1" tubing, ideal for building durable drivetrains, uprights, arms, and elevators that withstand intense competition demands.

Key Features

• 90-Degree Connections: Creates extremely strong right-angle joints between tubes, ensuring stability and rigidity in critical structures.
• Designed for Standard Tubing: Compatible with FRC 2" x 1" tubing featuring 10-32 through holes spaced at 0.5".
• Versatile Face Options: Available for 1" face or 2" face orientations to suit various tube mounting configurations.
• Durable Construction: Machined from Aluminum 6061 with a black anodized finish.
• Thick and Robust Design: Features a 0.25" thick side rib for enhanced support and a 0.15" thick plate for reliable load-bearing.
• Easy Integration: Perfect for drivetrains, uprights, arms, elevators, and other high-stress applications in FRC builds.

SWYFT Tube Connectors provide the strength and precision FRC teams need to create rock-solid robots. Reinforce your designs with these reliable joints and dominate the field.

Also See: SWYFT Tube Endcaps

CAD&Drawings
